Being rerun. The stack below now runs the sketch, exact and raw pipelines side by side (#25), and experiments.py has pipelines instead of inline-cost. The results below are from the earlier setup; this PR will be updated with the pipelines and accuracy-size reruns.

Part 10 of the telemetry-functions stack: the measured results of experiments 1 (inline cost) and 2 (accuracy versus size), generated by report_experiments.py from experiments.py output (#30). Every stage is a pinned asap-collector container on 56-core x86 servers, with 10-second windows. Full tables and CSVs are in docs/results/experiments.md.

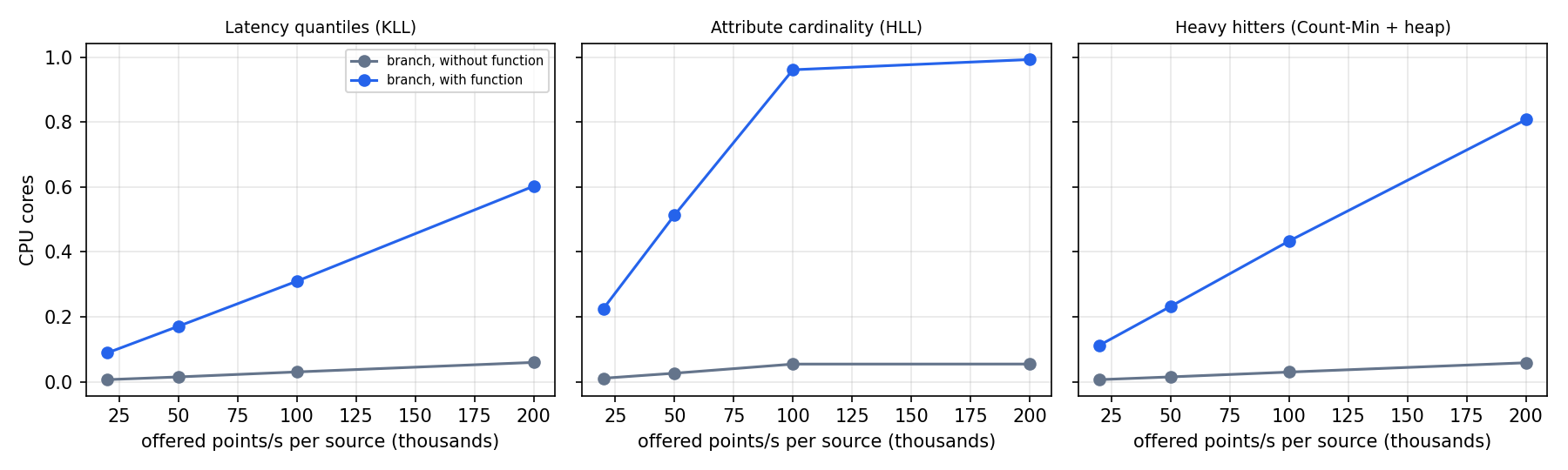

Inline cost: branch CPU with and without each function

Branch CPU with and without each function

Function Added branch CPU per point Branch CPU at 200,000 points/s per source
none (forwarding only) (about 0.3 µs in total) 0.06 cores
KLL latency quantiles 2.7–4.1 µs 0.60 cores
Count-Min + heap, top-k 3.7–5.3 µs 0.81 cores
HLL over 4 attribute keys 9–11 µs (about 2.3 µs per key) one core reached at about 100,000 points/s
  • The global stages (merge, detector) receive a few KB to 180 KB per window and use under 0.01 cores.
  • The exact baseline, which receives every raw point, needs a full core at about 95,000 points/s for cardinality and about 400,000 points/s for latency quantiles.
  • Answers arrive 2–3 s after a window ends (these runs used a 2-second merge grace).
  • These per-point costs put a branch below the ~1M points/s per core reference. The next step is a profile of the per-point path; decoding OTAP into observations and the per-attribute split are the likely costs, not yet measured.

Accuracy versus size (one window per setting)

Setting Error Merge bytes per window
KLL k = 50 / 100 / 200 / 400 p99 median error 13.3% / 7.0% / 7.5% / 2.0% (routes ≥ 20,000 points) 39 / 58 / 96 / 181 KB
Count-Min 256 / 512 / 1,024 / 2,048 columns, 100,000 keys recall@10 1.0 at every width; top-10 count error 6.0% / 2.8% / 1.3% / 0.46% 7 / 11 / 12 / 19 KB

Single windows, so neighbouring settings can cross (KLL k = 100 vs 200).

@zzylol
zzylol force-pushed the docs/governance-and-rfc branch from 0965b48 to 17186b1 Compare October 12, 2026 22:09
@zzylol
zzylol force-pushed the feat/experiment-results branch from 67930ea to 4cf35de Compare October 12, 2026 22:09
@zzylol
zzylol force-pushed the docs/governance-and-rfc branch from 17186b1 to f263a6c Compare October 13, 2026 00:20
@zzylol
zzylol force-pushed the feat/experiment-results branch from 4cf35de to be08a0a Compare October 13, 2026 00:20
@zzylol
zzylol force-pushed the docs/governance-and-rfc branch from f263a6c to f19756b Compare October 19, 2026 02:31
@zzylol
zzylol force-pushed the feat/experiment-results branch from be08a0a to 19c8143 Compare October 19, 2026 02:31
@zzylol
zzylol force-pushed the docs/governance-and-rfc branch from f19756b to 330dfc9 Compare October 19, 2026 14:57
@zzylol
zzylol force-pushed the feat/experiment-results branch from 19c8143 to 016efad Compare October 19, 2026 14:57
Inline cost (branch CPU with and without each function, 20k-200k points/s
per source), the exact baseline's own cost, and accuracy versus sketch size
(KLL k, Count-Min width over 100,000 keys), measured on 56-core x86 servers
with every stage a pinned asap-collector container. Generated by
report_experiments.py from experiments.py output.
