fix(compiler): an unresolved alpha corrupts the colour beside it

[YevheniiKotyrlo]

Problem

lightningcss hands over rgb(… / var(--a)) and hsl(… / var(--a)) as an unresolved colour: the channels resolved, the alpha a token list. On main both spellings render the wrong colour or none:

• the rgb channels are multiplied by 255 a second time, so rgb(51 102 153 / var(--a)) renders rgba(13005, 26010, 39015, 0.5), which React Native clamps to white. Only a saturated channel such as rgb(255 0 0 …) comes out right.
• the hsl channels are emitted as hsl(120, 50, 50, 0.5), which React Native's parser rejects, so the property is unset. So is every infinite or NaN hue.
• a variable declared once and read only inside such an alpha loses its declaration to the inliner, so the alpha comes out empty and the colour renders opaque.

Root cause

• lightningcss converts rgb channels to 0-255 before the compiler sees them, which is why parseColor divides the same channels by 255 for colorjs.io. parseUnresolvedColor multiplied them again.
• The hsl branch forwarded lightningcss's unitless channels under hsl, while React Native's hsl() takes three arguments with percentage saturation and lightness.
• The inliner walks var and function tokens but not lightningcss's unresolved-color.

Solution

• The rgb channels pass through.
• The hsl channels convert to sRGB with colorjs.io, as parseColor converts the resolved spelling, and emit rgba(r, g, b, alpha).
• A hue that is infinite, NaN or at least 2 ** 32 renders as hue 0. Chromium, Firefox and WebKit render an infinite or NaN hue as 0. The second lightningcss pass reparses a hue as a float32, and from 2 ** 32 one float32 step spans more than a turn, so the value no longer names an angle.
• The inliner folds a variable inside an unresolved colour's alpha and inside light-dark()'s arms. fix: resolve light-dark() at runtime from the used colour scheme #420 carries the same commit; whichever lands second drops it.

Tests

• src/__tests__/native/colors.test.tsx
  • 21 colours whose expected value is what Chromium 153, Firefox 155 and WebKit 26.6 compute with an alpha of 0.5:
    • rgb with integer, fractional, percentage and out-of-range channels
    • hsl in deg, turn, rad and grad, with wrapped and negative hues and clamped saturation and lightness
  • Each colour renders four ways, so the unresolved and resolved paths are held to one answer: alpha read at runtime, alpha read from a fallback, alpha folded at compile time, and the resolved spelling.
  • Infinite and NaN hues, rendered at runtime and from a fallback.
  • A variable redeclared on the element.
  • The float32 boundary from both sides: 3e9 reduces; 2 ** 32, 1e20 and 1e38 render as hue 0, as their resolved spelling does.
  • light-dark() carrying an unresolved alpha into both schemes.
• src/__tests__/compiler/declarations.test.tsx: the descriptor for each spelling.
• src/__tests__/compiler/compiler.test.tsx: folding inside an alpha and inside a light-dark() arm.

On main, 83 of the 144 cases in the three files fail; all pass here. Each mechanism was reverted on its own to confirm its cases fail without it.

Verification

On Windows with Node 26:

• yarn lint clean
• yarn typecheck clean
• yarn test --maxWorkers=2 --coverage: 1442 passed, 4 failed. The 4 are the babel cases that also fail on main on this machine.
• yarn build clean
• yarn example expo export --platform web exported
• nothing unstaged after either build

Not run: the iOS build.

No open issue covers it. Device evidence, before and after: #421 (comment)

Known limits

• An unset alpha with no fallback renders the colour opaque. Browsers treat that declaration as invalid at computed-value time: transparent for background-color, inherited for color. The cause is that the runtime drops a var() with no value from the function it sits in, and that reaches every function, not only colours.
• The runtime stringifies these spellings without parsing them, so React Native rejects each of the following unless the inliner folds it:
  • an alpha given as a percentage (--a: 25% reaches it as rgba(255, 0, 0, 25%))
  • a colour function whose channels are variables
  • a none channel
  • hwb()
  • the four-argument comma form of hsl()
• The first lightningcss pass serializes numbers to six significant digits, so hsl(12345678 50% 50% / var(--a)) arrives as hsl(12345700 …) and renders 220° where the resolved spelling and browsers render 198°.
• For a hue of 3e9, Chromium and WebKit reduce it to 120° and Firefox renders 0°; this follows Chromium and WebKit.
• lightningcss's first pass resolves hsl(calc(infinity) 100% 50%) to #000, while browsers and the unresolved spelling render hue 0.

Related

#420 carries the same inliner commit. #351 fixed the same class of defect in the same file.

Merge order

This overlaps #391; I'll re-cut whichever of the two lands second.

Base

Re-written on main (a5002c5).

[YevheniiKotyrlo]

Device evidence — before / after

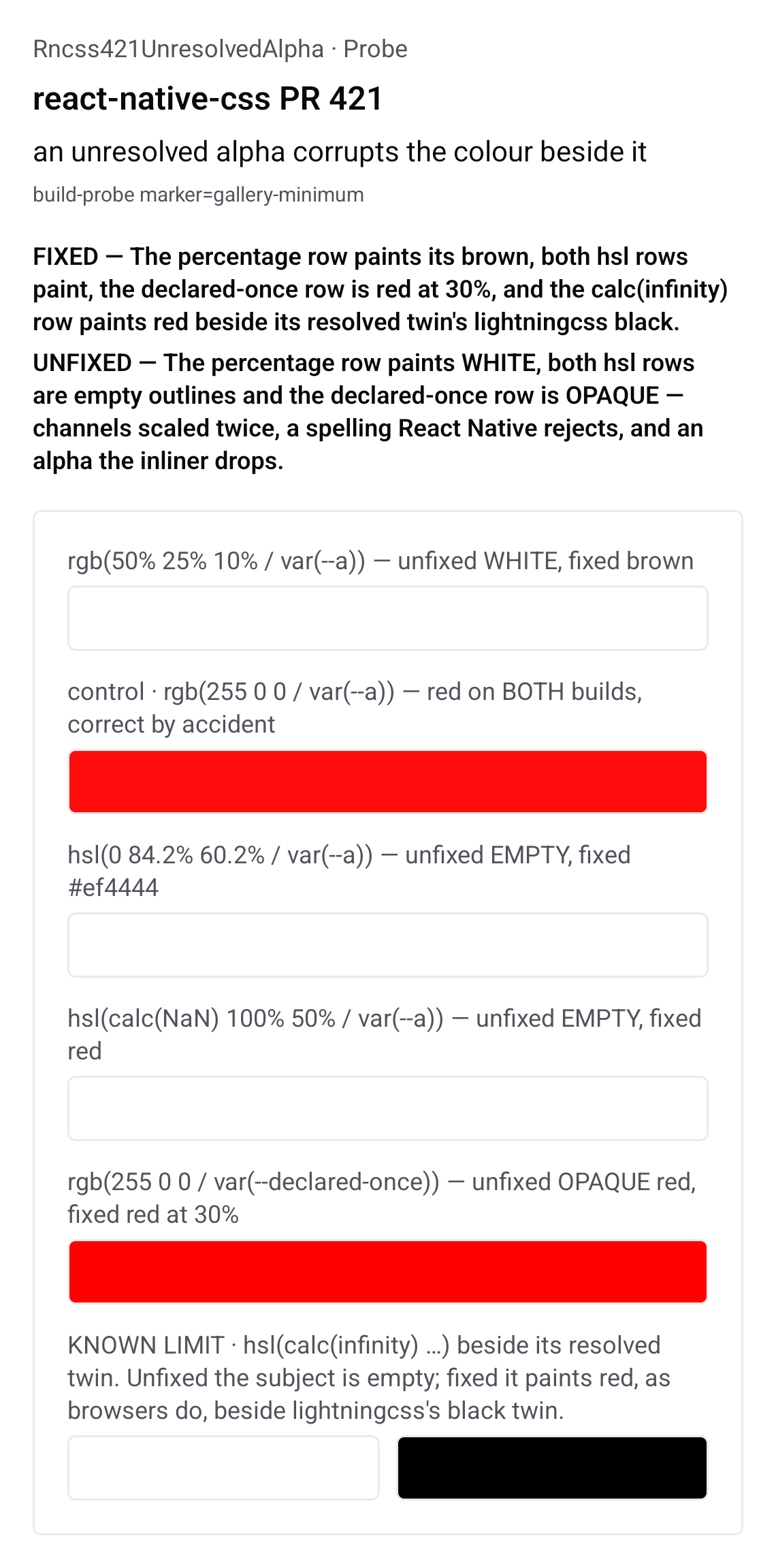

UNFIXED — The percentage row paints WHITE, both hsl rows are empty outlines and the declared-once row is OPAQUE — channels scaled twice, a spelling React Native rejects, and an alpha the inliner drops.

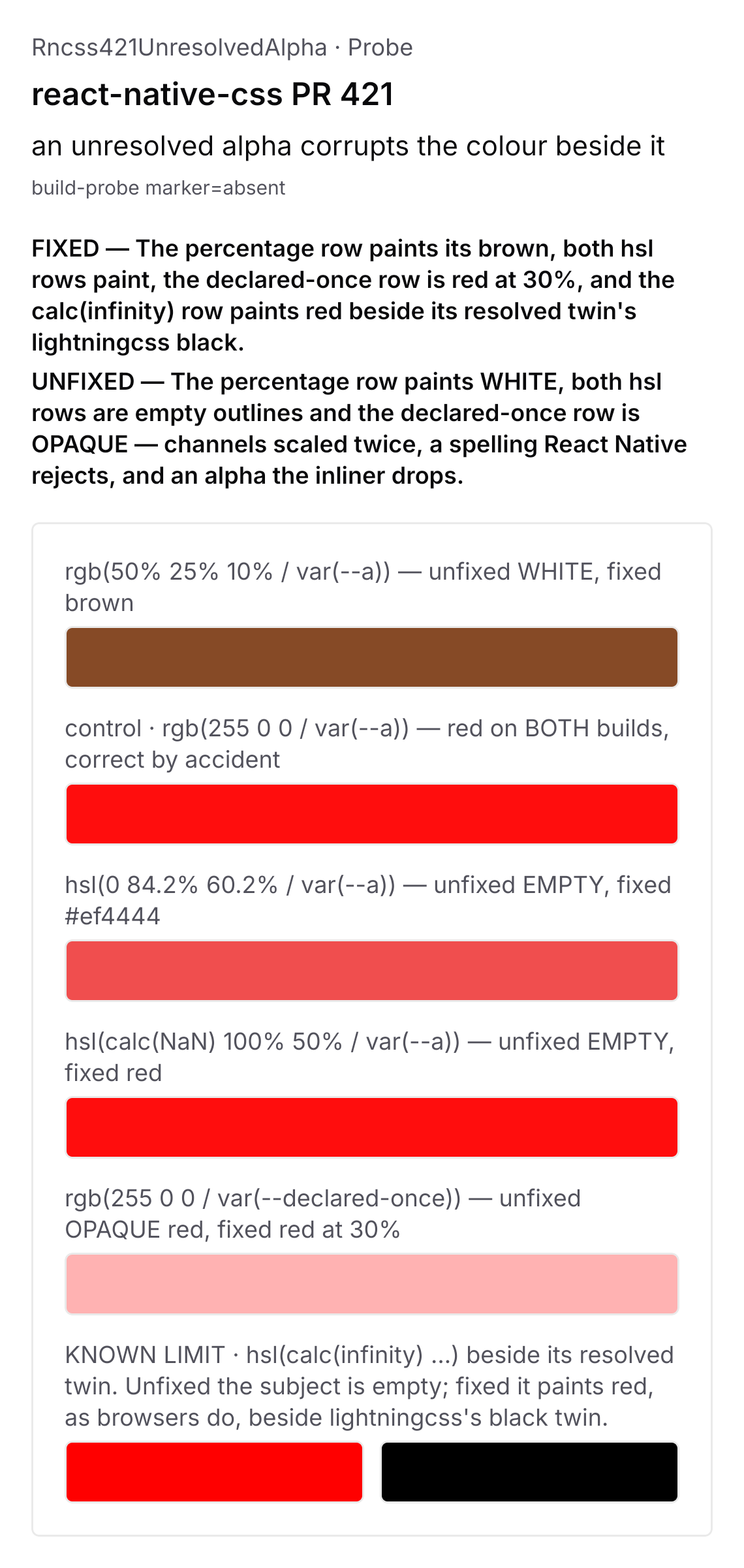

FIXED — The percentage row paints its brown, both hsl rows paint, the declared-once row is red at 30%, and the calc(infinity) row paints red beside its resolved twin's lightningcss black.

before — 3.1.0-rc.0	after — with this PR

Android 16 emulator (API 36, GLES on the host GPU), 1140×2400 @ 480dpi, both frames from one run. before is the published 3.1.0-rc.0 plus what my test app needs from my other patches to run: the native and native-internal subpath exports, PR 459, cascade-layer ranking, and a shim that compiles a class-qualified :root inert. after adds the rest of my open PRs, this one included. One of them shows on every screen: PR 417 narrows a var()-valued font-family to one family, so the after sets its text in the theme's face where the before falls back to the platform's.
