Before this change, the SatelliteMobility config of examples/mobility showed an empty canvas in Qtenv when the user opened europe and then budapest. The OpenStreetMapSceneCanvasVisualizer inside the Budapest module kept its coordinateSystemModule default, "coordinateSystem", which OMNeT++ resolves from the network. It therefore projected the Óbuda streets through the network's Wgs84EcefGeographicCoordinateSystem instead of the Wgs84AnchoredGeographicCoordinateSystem beside it. The streets landed far outside the map bounds, and adjustBackgroundBox stretched the background box (bgb) over them, so the view fitted to that box (zoom 0.001) showed no street.

After this change, the ini sets *.europe.budapest.map.coordinateSystemModule = "^.coordinateSystem", and the Budapest canvas shows the street map. The setting is in the ini file, beside the other coordinateSystemModule settings of this network, such as that of *.europe.budapest.mobility.

The fix is in the example, not in the default of the parameter. The NED documentation of OpenStreetMapSceneCanvasVisualizer says the default refers to a top-level module, and SceneOsgEarthVisualizer uses the same default. examples/openstreetmap relies on it. There the visualizer is visualizer.sceneVisualizer, so a default of "^.coordinateSystem" would name the nonexistent visualizer.coordinateSystem, and the mandatory reference would stop that example with an error. These two examples are the only users of the visualizer in examples/, showcases/, tests/ and tutorials/. The risk is limited to the SatelliteMobility config in a graphical user interface.

Closes #1398

Commits

1. tests: change: re-record the SatelliteMobility tyf fingerprint for the new fake GUI probabilities (17a67ca219) prepares: it moves the tyf row of SatelliteMobility in tests/fingerprint/store.json from 772e-b194 to 332a-ea89 and changes nothing else. The cause is opp_repl commit 5049cc8fbe, which changed the fake graphical user interface (GUI) probabilities of the tyf ingredients from 0.1 to 0.001; INET does not change. Without it, the row fails on master under the current opp_repl, and the fix commit would carry two causes in one value. The same commit is the first commit of pull request examples: the Europe map image lines up with the latitudes drawn on it #1397 (the Europe map image) and of a sky view title change that is not filed yet, so it merges once.
2. examples: fix: draw the Óbuda street map in the SatelliteMobility config sets the parameter in examples/mobility/omnetpp.ini and moves the same row from 332a-ea89 to 4268-429c. It changes what Qtenv draws. The default fingerprints do not change.

No architectural surface is touched: no contract, packet content, feature descriptor or NED default changes; the configuration change is one ini line of an example.

Evidence

All results are from this branch rebased onto master a40c4ffcdc3b05619999411023a916214e2c0fde (build: fix: the description of the INET package names the Testing chapter as text), release build. "Master" below means that commit; its behavior is reproduced on the branch with --*.europe.budapest.map.coordinateSystemModule="coordinateSystem", which restores the old effective value of the only changed line.

Qtenv, examples/mobility, inet -u Qtenv -c SatelliteMobility, canvas of SatelliteNetwork.europe.budapest fitted to a 584 x 455 pixel view, then exported with Qtenv's image export, which writes the whole canvas at the fitted zoom: 2048 x 712 pixels on master and 565 x 352 pixels on this branch. On master the fitted zoom is 0.001, the lowest zoom that Qtenv allows, and the canvas is an empty grey background:

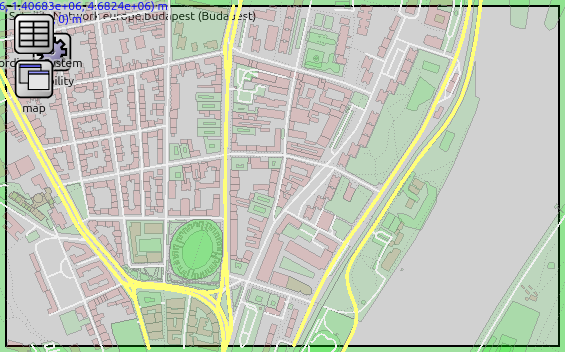

On this branch the fitted zoom is 0.452 and the canvas shows the Óbuda street map:

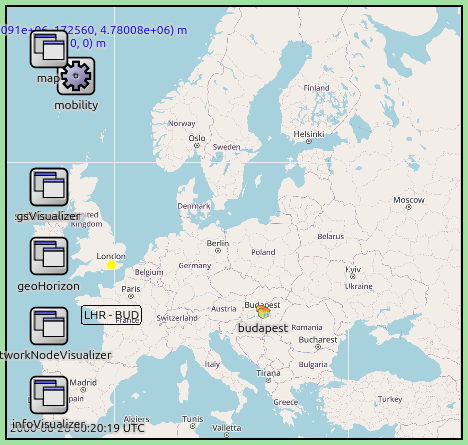

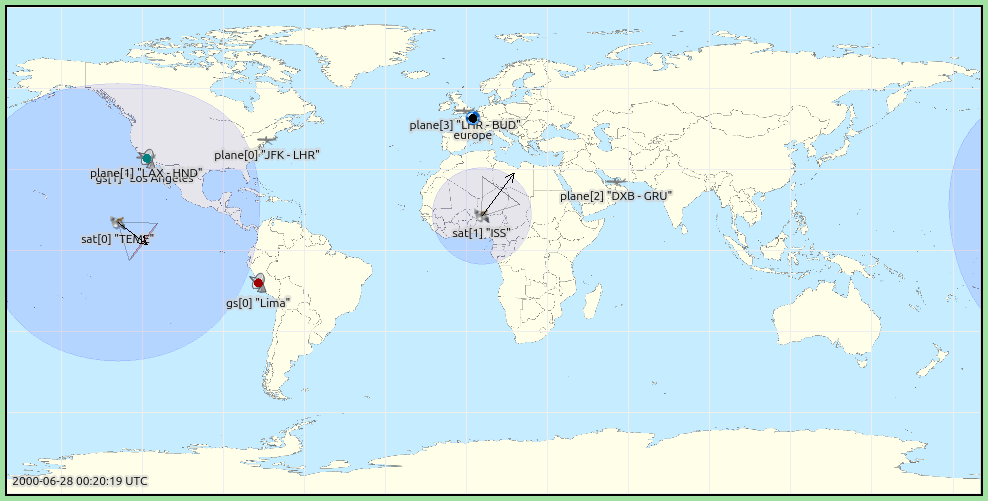

The world and Europe canvases of the same run still show their maps:

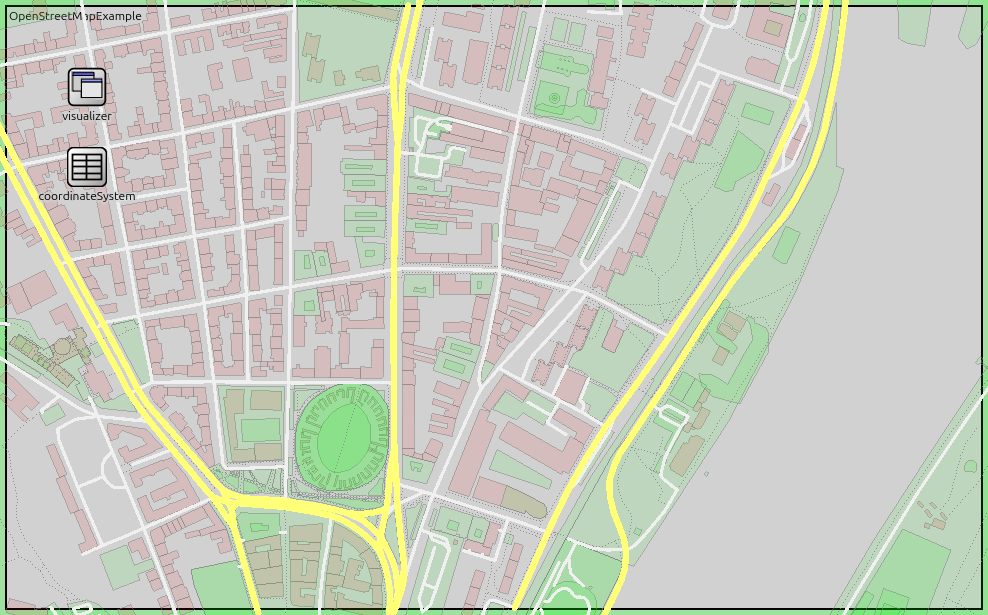

examples/openstreetmap (inet -u Qtenv, unchanged by this pull request) still draws the Óbuda map:

Fingerprints, with opp_repl at 39e15bcd6e (its current main):

opp_run_fingerprint_tests -m release -f 'examples/(mobility|openstreetmap)'

Master and this branch: 33 PASS each. The visualizer returns from initialize() early without a graphical user interface, so the default fingerprint ingredients (tplx, ~tNl and ~tND) cannot see it.

The graphical fingerprint (tyf) runs with cmdenv-fake-gui, so the visualizer draws, and its background box (in the display strings, y) and street figures (f) enter the hash:

opp_run_fingerprint_tests -m release -f 'examples/(mobility|openstreetmap)' --ingredients tyf

The stored SatelliteMobility row, 772e-b194, was recorded with the fake GUI probabilities 0.1 that opp_repl used before its commit 5049cc8fbe. Since that commit opp_repl runs tyf with 0.001, the values of INET's former fingerprinttest. The SatelliteMobility value under both argument sets:

tyf arguments	master	this branch
probabilities 0.1 (opp_repl before 5049cc8fbe)	772e-b194 (equals the stored row)	3693-5ddd
probabilities 0.001 (opp_repl since 5049cc8fbe)	332a-ea89	4268-429c

Commit 1 re-records the row from 772e-b194 to 332a-ea89, which the opp_repl runner change alone causes, on the same INET code. Commit 2 moves it from 332a-ea89 to 4268-429c, because the street figures and the background box are now computed in the anchored frame.

At each of the two commits, opp_run_fingerprint_tests -m release --no-build -f 'examples/(mobility|openstreetmap)' gives 33 PASS, and opp_run_fingerprint_tests -m release --no-build -w examples/mobility -c '^SatelliteMobility$' --ingredients tyf gives PASS, against 332a-ea89 after commit 1 and 4268-429c after commit 2. With the re-recorded row, the full tyf run above gives 30 PASS and 2 FAIL on this branch. The two failures, AttachedMobility and SuperpositioningMobility, fail on master too, and this change does not reach them. examples/openstreetmap passes on both.

Two other changes also move this row from 332a-ea89, after the same commit 1: pull request #1397 (the Europe map image) and a change that adds titles above the sky view plots, not filed yet. Whichever of the three merges later must re-record the row again on the merged code.

Gates, on this description without its title line:

doc/project/enforcement/check-pull-request.sh --base origin/master --head HEAD --description-file <this description>

All six gates pass with 0 violations and 0 notes: check-commits.sh, check-classification.sh, check-includes.sh, check-ned-params.sh, check-whatsnew.sh and check-pr-description.sh.
