Summary

Adds an MCP server (apps/mcp) so coding agents (Claude Code, Cursor, Codex…) can author Bedrock particle effects with Oxygen's own engine, analysis and viewport. It also adds what came out of using it for real: a whole-file write, other effects in the scene, opening effects in the desktop app, and a fix for an engine bug the MCP surfaced (paused redraws).

Important

Depends on dev-hydrogen/oxygen-wintersky#1. The second commit bumps vendor/wintersky to d94434e, which for now only exists in avtara/oxygen-wintersky. Please merge that PR first, then CI can check out the submodule (re-run the checks, or I'll rebase onto the merged commit).

Review commit by commit. They're split so each can be read on its own:

Commit	What	Size
1. Add an MCP server for coding agents	The server as first written, plus the small packages/ui exports it needs	23 files, mostly new apps/mcp
2. MCP: write_effect, scene effects, open_in_editor; fix paused redraws	New tools and options, desktop single instance, submodule bump, docs	16 files

Commit 1: the MCP server

A stdio server (apps/mcp/dist/server.cjs, built with esbuild). The preview page is built with Vite and driven headless through Playwright/Chromium.

Tool	Does
reference	Components (fields, defaults, evaluation phase), materials, Molang queries and maths, plus docs/accuracy.md and docs/molang.md as topics
list_examples, create_effect	Start from the starting effect or a bundled example under a new identifier
read_effect, check_effect	Summary (components, curves, events, variables, scenarios) and the Problems panel's problems
edit_effect	Surgical edits by JSON path (JsonDocument): formatting, key order and comments kept; all-or-nothing; replies with a semantic diff
simulate_effect, preview_effect	EffectSession + ViewportScene stepped on a fixed 60 fps clock and seed: counts, bounds, emitters, events, runtime problems, pictures or a contact sheet

Where to look:

• apps/mcp/src/server.ts: tool schemas and handlers.
• src/effects.ts: analysis and edits.
• src/pack.ts: pack root, child effects, textures.
• preview/main.ts: headless stepping.
• src/browser.ts: Playwright and the local file server.

Outside apps/mcp:

• packages/ui: exports ViewportScene, DEFAULT_GIZMOS and the texture/MERS providers. EffectSession.refreshStats() becomes public. ViewportScene.frame(dt, draw = true) can step without drawing. No behaviour change for the apps.
• CI builds the server, vitest.config.ts includes apps/mcp/test, and README/docs/building.md/docs/agents.md cover setup.

Commit 2: improvements found by using it

Engine fix (submodule bump). Redrawing a paused frame re-ran per_render_expression. Render-pass counters (7 bundled examples) then drifted to wrong colours and sizes whenever the preview was paused. preview_effect hit this on every picture, because it draws paused frames until textures settle. The editor hit it whenever you paused. Details and the regression test are in oxygen-wintersky#1.

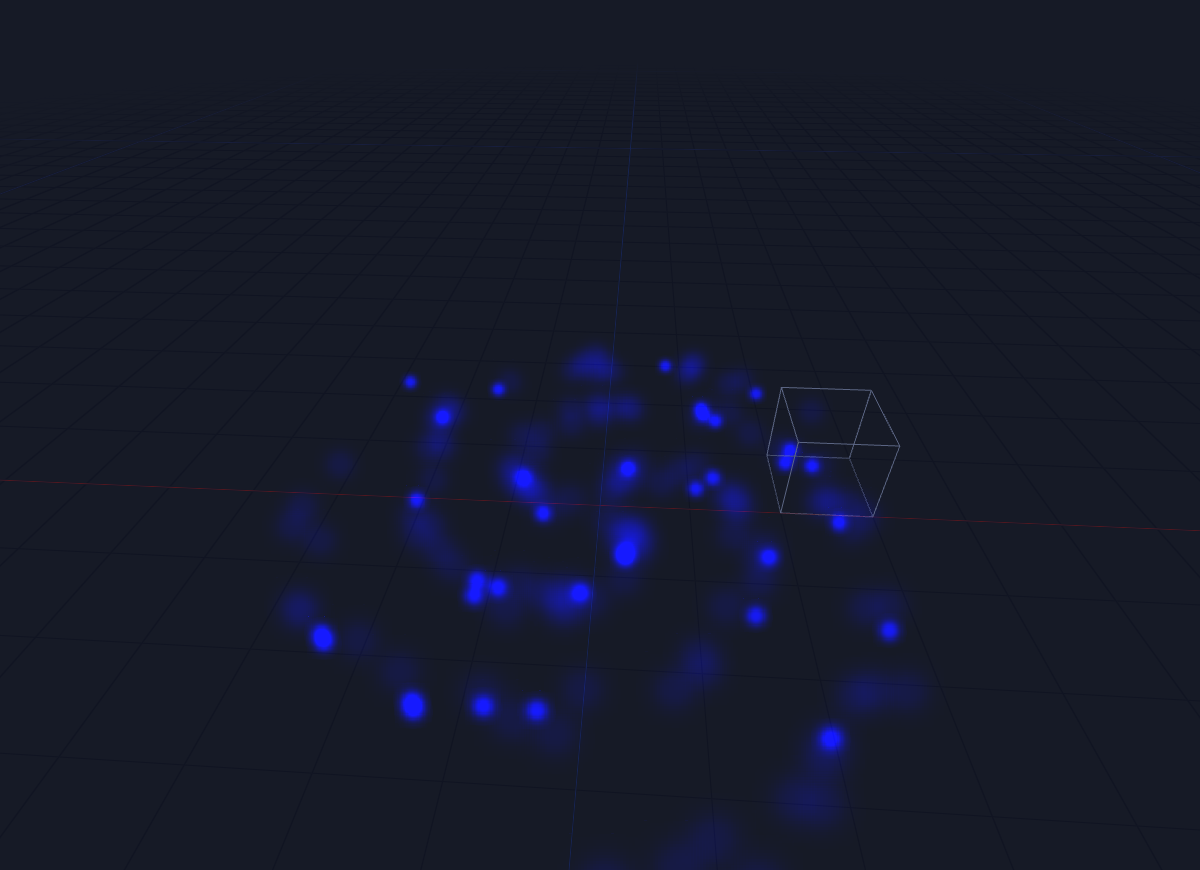

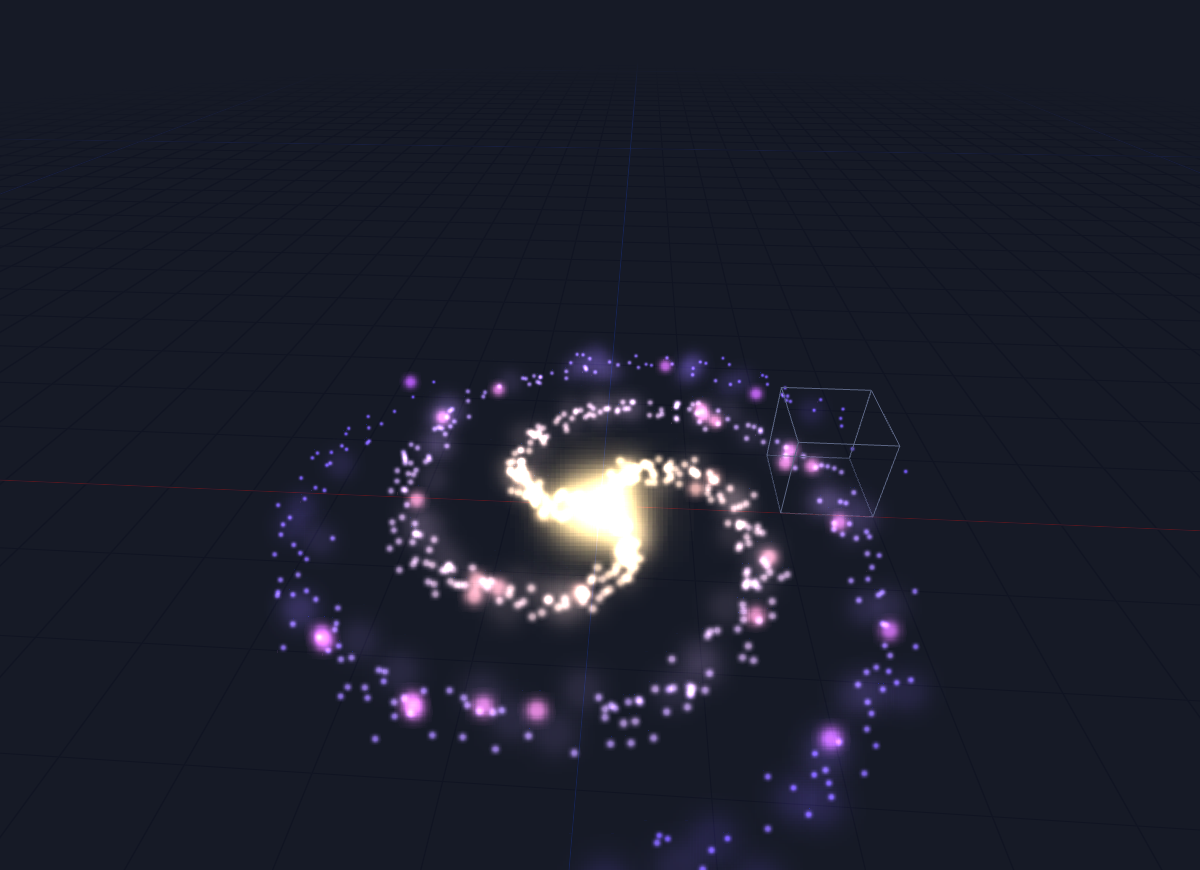

Unmodified spiral_galaxy example through preview_effect, same camera, t = 3 s
Before
After

MCP

Change	Why	Where
write_effect: replace or create a whole file; refuses invalid JSON; semantic diff or new-file summary; dry_run	Rewrites (e.g. a new components block) took a long list of set edits	server.ts, effects.ts rewriteDiff
others: [{effect, position}] on simulate_effect / preview_effect	Composing effects (galaxy behind a black hole). Uses the session's existing scene.extras, no new engine path	server.ts runRequest, preview/main.ts, protocol.ts extras
Scene extras saved in the file now reach the preview	childEffects only followed events, so file-kept extras never got their JSON	pack.ts childEffects(…, also)
preview_effect return_images: false (requires save_to)	A 1200×870 PNG per call is a lot of context when the agent only needs the file	server.ts
open_in_editor	Show the user the result; the app already follows disk changes, so later agent edits appear live	src/desktop.ts

open_in_editor looks for Oxygen in this order: OXYGEN_DESKTOP, then the desktop build of the repository the server was built in, then /Applications/Oxygen.app (macOS) or %LOCALAPPDATA%\Programs\Oxygen\Oxygen.exe (Windows). It clears ELECTRON_RUN_AS_NODE for the child, because agents built on Electron (VS Code, Cursor) set it for MCP servers.

Desktop: one instance

• requestSingleInstanceLock(). A second launch hands its files to the first through second-instance, and macOS open-file takes the same path. The renderer opens them, or focuses the existing tab (Workspace.open already dedupes), then the second instance quits.
• Files that arrive before the renderer has asked for its start files are queued and returned by openedAtStart. The window is only raised once the renderer runs, so there's no blank window flash.
• The lock is per userData, so OXYGEN_USER_DATA test profiles stay independent.
• Code: apps/desktop/src/main.ts, preload.ts, api.ts (onOpenRequested) and renderer/main.ts.

Docs

• agents.md: new tools and options, plus "Opening effects in Oxygen".
• accuracy.md: per-particle values in the render pass, because variables are per emitter.
• building.md: the Electron cache workaround and single instance.
• CHANGELOG.

Testing

Check	Result
pnpm test (vitest)	361/361
tsc / svelte-check: wintersky, @oxygen/mcp, @oxygen/desktop, @oxygen/ui	0 errors
Commit 1 on its own: @oxygen/mcp typecheck + apps/mcp tests	clean, 6/6
pnpm test:desktop	all pass, including the new "starting Oxygen again with a file opens it in the running window"
Engine regression test	fails without the fix (0.21 vs 0.01), passes with it
stdio smoke of every changed tool	✅ (see below)

Smoke results through the built server (JSON-RPC over stdio):

• write_effect: invalid JSON → error and no file written; new file → summary; dry_run → diff and the file unchanged; identical text → "No change".
• others: poc:galaxy at [0, 0, -8] plays alongside (2 emitters, bounds reach z = −11.4); an unknown identifier is reported.
• return_images: false: 0 images in the reply; without save_to the call is refused.
• open_in_editor: with Oxygen already running, the file opened as a new tab in that window, and only one Electron main process remained.

Proof of concept: effects made by an agent through this MCP

Everything below was built by Claude Code driving only these tools (create_effect, edit_effect, write_effect, check_effect, preview_effect, open_in_editor), working from a reference. The files are on the pr-assets branch, kept out of this diff.

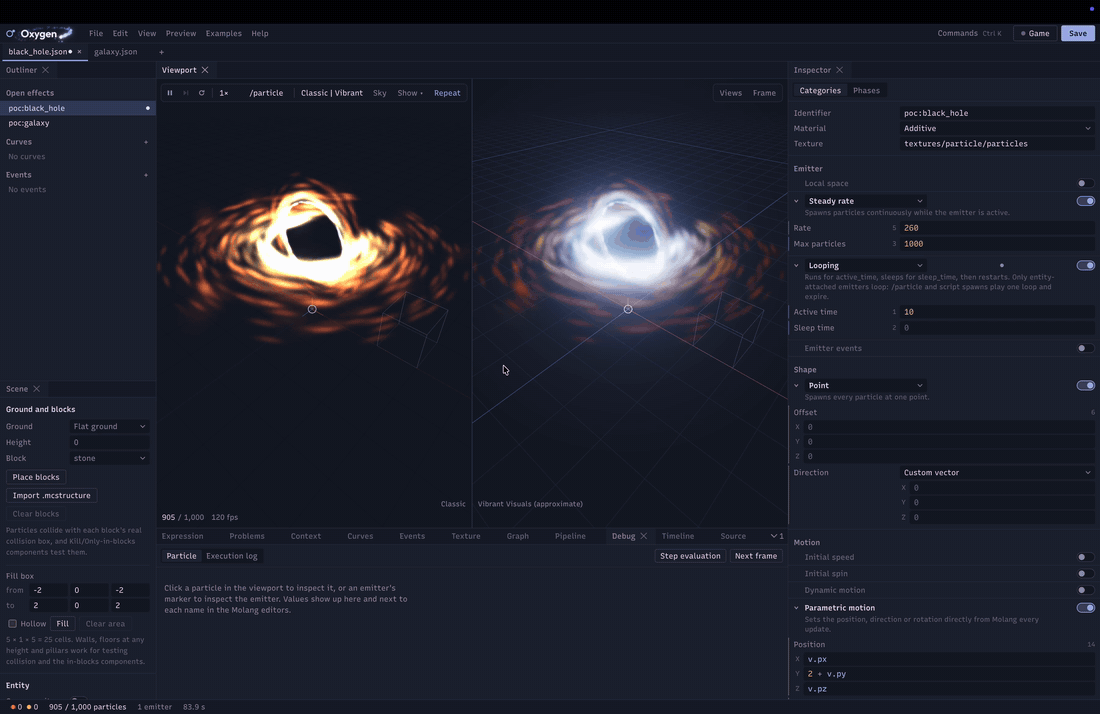

Black hole and spiral galaxy

Reference	Result in Oxygen desktop (mp4)

• Black hole (poc:black_hole, one particles_add effect):
  • an accretion disk with Keplerian-ish orbit speed, white-hot inside fading to red outside
  • a vertical lensed halo and a photon ring
  • the shadow, made by hiding disk particles that sit behind the hole from the viewing direction
• The MCP shaped this design. It warned that q.rotation_to_camera is constant for /particle (camera-query-constant), so the halo faces a fixed view, adjustable through v.view_yaw from a script.
• Galaxy (poc:galaxy): the spiral galaxy example, with per-particle values moved to particle_random. The update-render-carry warning caught a wrong first attempt.

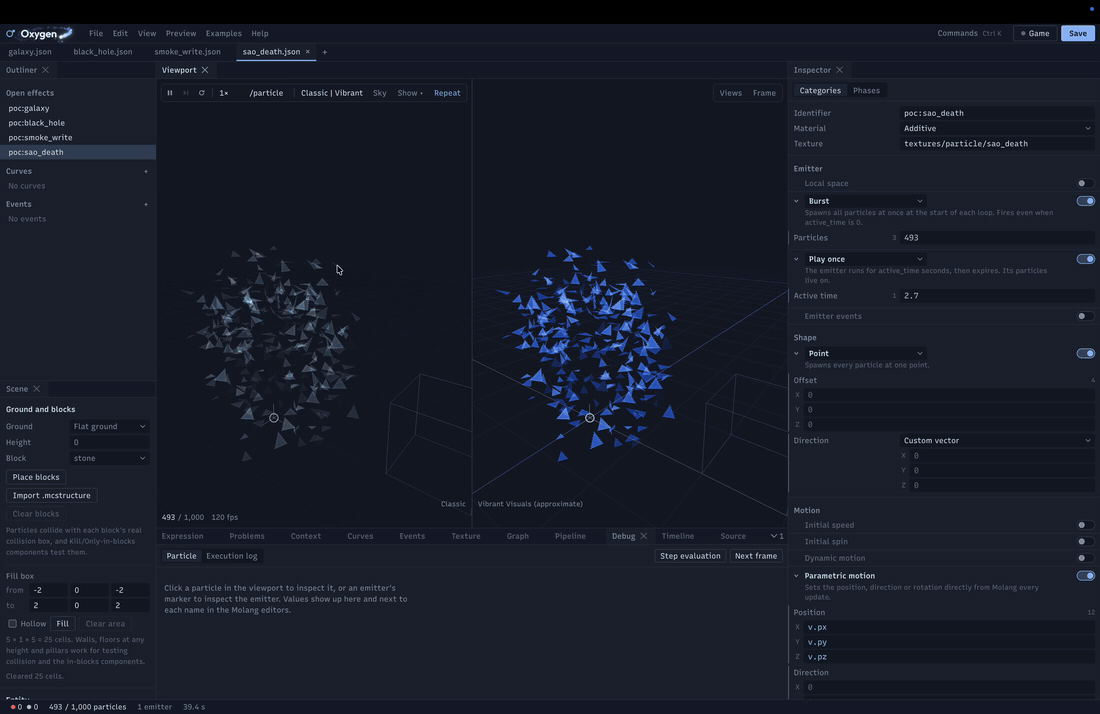

SAO death (holographic Steve shattering)

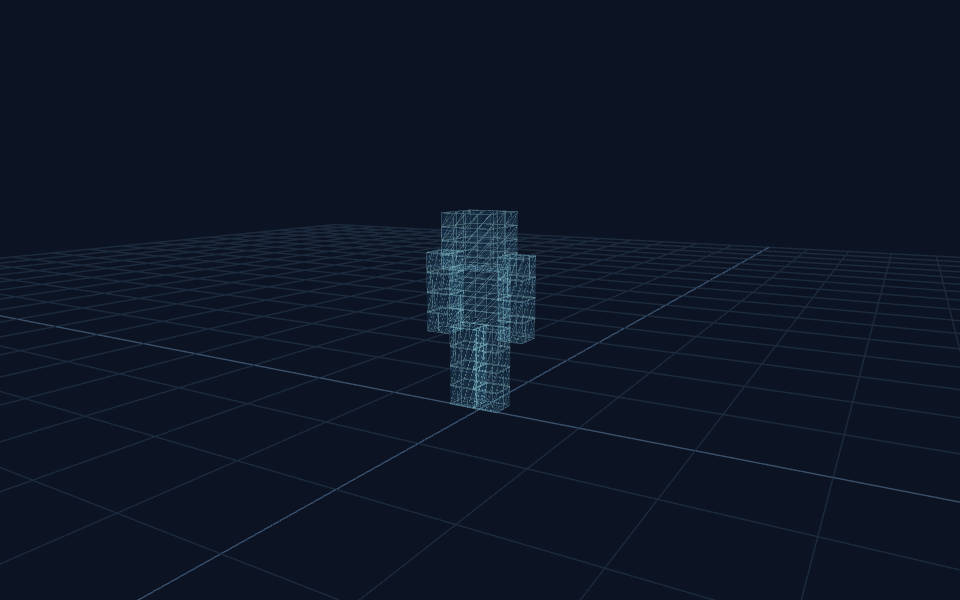

Reference	Result in Oxygen desktop (mp4)

poc:sao_death is one /particle effect of 493 particles, with no child events (a child spawned under /particle lands at the world origin):

• Holographic Steve: 72 double-sided direction_z quads, i.e. 6 parts × 6 faces at real Steve proportions, with a custom wireframe texture.
• Flash: a chest glow that ramps up from 0.12 s to 0.3 s.
• Shards: 420 triangles burst out of the body volume, tumble, settle at y ≥ 0 and fade out by about 2.3 s.

Faces use update/render counters; that's what showed the paused-redraw bug. Contact sheet: sao-death-sheet.png.

Not covered

• The PoC effects weren't run in Minecraft; they were checked with Oxygen's preview only.
• open_in_editor was exercised on macOS with the repository build. The Windows path and OXYGEN_DESKTOP were not run.
