HardwareReport: add OSD options to minimal parameter output - #368

Open
j-w9 wants to merge 1 commit into
ArduPilot:mainfrom
j-w9:hardware-report-osd
Open

j-w9 wants to merge 1 commit into
ArduPilot:mainfrom
j-w9:hardware-report-osd

Conversation

@j-w9

@j-w9 j-w9 commented Oct 17, 2026

Copy link
Copy Markdown
Contributor

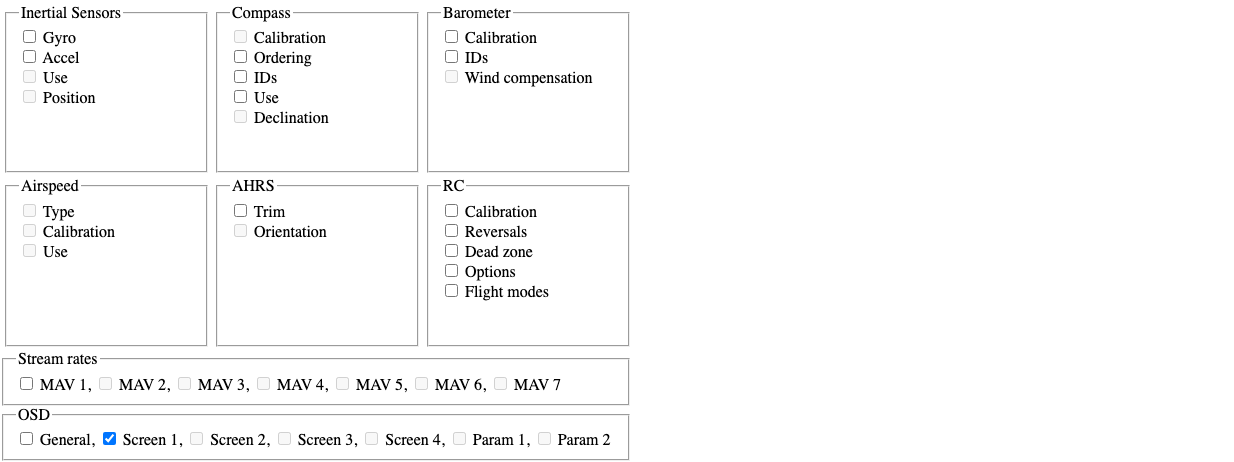

The last open item in #72: OSD params are left out of the minimal parameter output unless selected. Following your suggestion there, there is one checkbox for the top level OSD_* params and one per screen: OSD1_* to OSD4_*, and the param screens OSD5_* and OSD6_*.

There are too many OSD params to list by name, so the minimal param lists now also accept a prefix ending in *. Existing exact-name lists behave as before.

Checked on a log with OSD params: main's minimal file has 196 params including 38 OSD. With this change it has 158 and no OSD params, ticking Screen 1 adds its 36, and screens with no params are disabled like the other groups.

OSD options
